Automatic Euro Cap Assembly Machine 14000-18000pcs/h 50Hz

Merknaam:	SENCAN
Modelnummer:	SC-TP-782
MOQ:	1 set
Prijs:	Negotiate the price according actual situation
Betalingsvoorwaarden:	T/t, l/c
Leveringscapaciteit:	3-20 sets

Gedetailleerde informatie

Productbeschrijving

Gedetailleerde informatie

Plaats van herkomst:

China

Certificering:

CE, ISO9001

Capaciteit:

14000-18000 stuks/uur

Werkmodus:

Automatisch

Productie -efficiëntie:

Hoog

Gewicht:

500 kg

Operator:

Enkel of dubbel

Productfrequentie:

50Hz

Assemblagetype:

Automatisch

Montagecapaciteit:

4500-12000 per uur

Cap Diameter Range:

10-50 mm

Werkinterface:

Aanraakscherm

Model:

Cap assemblage machine

Werkmodus:

Automatisch

Functies:

Hoge efficiëntie, gemakkelijk te bedienen

Mechanisme:

Servo

Toepasselijke producten:

Euro Cap

Verpakking Details:

Houten behuizing

Markeren:

Automatic Euro Cap Assembly Machine 14000pcs/h

Euro Cap Assembly Machine 50Hz

High-speed Euro Cap Assembly Machine

Productbeschrijving

Features

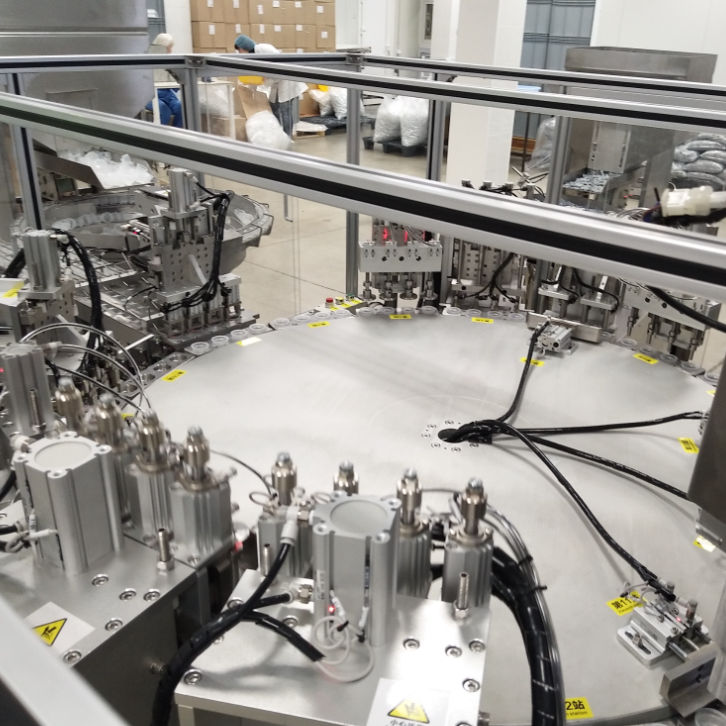

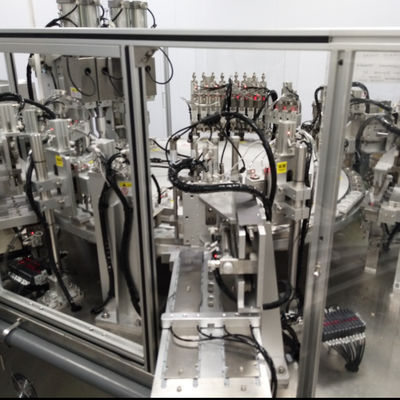

1. This machine is applied for automatic assembly of caps for plastic IV infusion bags and bottles.

2. Machine made of stainless steel + aluminum alloy, in compliance with ISO and GMP standards

3. Each workstation has independent driving source , convenient for daily maintenance.

4. The surface in contact with the product is polished to protect the product.

5. The inner cap is pressed by servo-linked rod structure system, with even and stable pressure each position each workstation, pressing quality of each cap could be guaranteed.

6. Each assemble process is followed with inspection function to make sure no defective products in qualified products.

7. PLC control system, human-machine interface operation. No high professional technical requirement for operator.

8. Main power composed of servo motor + indexing drive, high assembly precision and qualified rate.

9. Pneumatic power for shorter time of maintenance

10. Highly customized according to customer's requirements, actual capacity and production demand.

Properties

Applicable products	Loop pull cap, double pull cap, single fold closure, double fold cap, break caps
Production speed	3600-1400pcs/hr (according to customer’s requirement)
Rate of qualified product	Above 99%
Rate of operation rate	Above 95%
Power source	AC380V,50Hz,4kw/hr
Dimension	Actual size varied with different production speed
Weight	About 2300kg
Operator	3sets/2persons,recommend 1set/person
