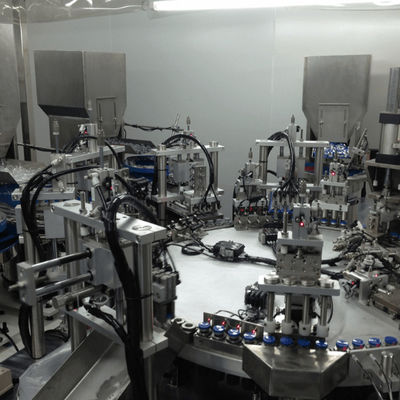

Automatic Cap Lining Machine 380V for Plastic & Metal Caps

Merknaam:	SENCAN
Modelnummer:	SC-TP-784
MOQ:	1 set
Prijs:	Negotiate the price according to actual situation
Betalingsvoorwaarden:	T/t, l/c
Leveringscapaciteit:	3-20 sets

Gedetailleerde informatie

Productbeschrijving

Gedetailleerde informatie

Plaats van herkomst:

China

Certificering:

CE, ISO9001

Productfuncties:

Automatische dopvoering, verstelbare snelheid, gemakkelijk te bedienen

Geschikt kapmateriaal:

Plastic, Aluminium, Metaal

Besturingssysteem:

PLC -besturing

producttoepassing:

Drank, farmaceutische, cosmetische en andere industrieën

Producttype:

Kapmachine

Gekwalificeerd tarief:

99% vereiste)

Operator:

1 set/persoon

Ritme:

Stroomproductielijn

Automatisch cijfer:

Automatisch

Productspanning:

380V

Werking:

Automatisch

Verpakkingstype:

Houten behuizing

Verpakking Details:

Houten behuizing

Markeren:

380V automatic cap lining machine

plastic cap lining machine

metal cap lining machine

Productbeschrijving

Features

1. This machine is applied for automatic assembly of caps for plastic IV infusion bags and bottles.

2. Machine made of stainless steel + aluminum alloy, in compliance with ISO and GMP standards

3. Each workstation has independent driving source , convenient for daily maintenance.

4. The surface in contact with the product is polished to protect the product.

5. The inner cap is pressed by servo-linked rod structure system, with even and stable pressure each position each workstation, pressing quality of each cap could be guaranteed.

6. Each assemble process is followed with inspection function to make sure no defective products in qualified products.

7. PLC control system, human-machine interface operation. No high professional technical requirement for operator.

8. Main power composed of servo motor + indexing drive, high assembly precision and qualified rate.

9. Pneumatic power for shorter time of maintenance

10. Highly customized according to customer's requirements, actual capacity and production demand.

Properties

Applicable products	Loop pull cap, double pull cap, single fold closure, double fold cap, break caps
Production speed	3600-1400pcs/hr (according to customer’s requirement)
Rate of qualified product	Above 99%
Rate of operation rate	Above 95%
Power source	AC380V,50Hz,4kw/hr
Dimension	Actual size varied with different production speed
Weight	About 2300kg
Operator	3sets/2persons,recommend 1set/person
