Euro Cap Assembly Machine with 1 Year Warranty 95% Operation Rate and 0.3m3/min Air Consumption for Infusion Cap Assembly

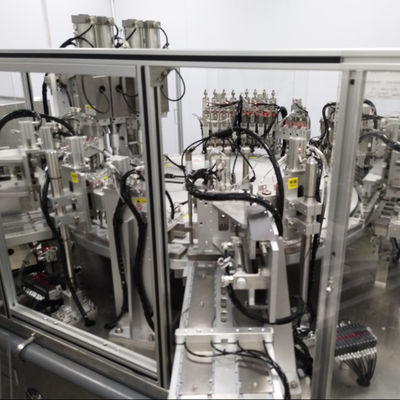

Grote Afbeelding : Euro Cap Assembly Machine with 1 Year Warranty 95% Operation Rate and 0.3m3/min Air Consumption for Infusion Cap Assembly

Productdetails:

Plaats van herkomst:	CHINA
Merknaam:	SENCAN
Certificering:	CE, ISO9001
Modelnummer:	SC-TP-796

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal:	1 set
Prijs:	Negotiate price according to actual situation
Verpakking Details:	Houten behuizing
Levertijd:	90 dagen
Betalingscondities:	T/t, l/c
Levering vermogen:	2-20 reeksen

Contact

Gedetailleerde productomschrijving

Voordeel:	Vlakke lasoppervlak van infusiedop	Garantieperiode:	1 jaar
Productgrootte:	Groot	Werking:	Ongeveer 95%
Verrichtingspersoon:	1 persoon	Operator:	Enkel
Mechanisme:	Servo	Kabelmaat:	Driefasig vijfdraadssysteem
Montagecapaciteit:	4500-12000 per uur	Stroomvoorziening:	220V/50Hz
Luchtverbruik:	0.3m3/min	Drijfveer:	Servomotor
Productkracht:	220V	Werkingspercentage:	96%
Productcapaciteit:	4000-12000 caps per uur
Markeren:	1 year warranty euro cap assembly machine , 95% operation rate infusion cap assembly machine , 0.3m3/min air consumption automatic cap assembly machine

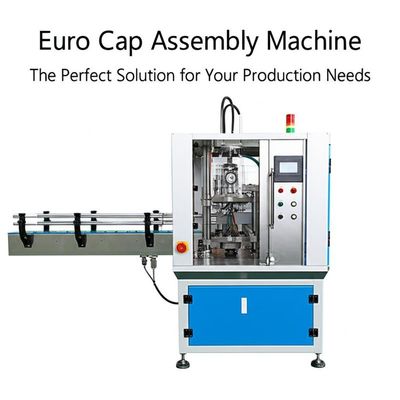

Euro Cap Assembly Machine - The Perfect Solution for Your Production Needs

Key Features

Designed for automatic assembly of caps for plastic IV infusion bags and bottles
Constructed with stainless steel and aluminum alloy, compliant with ISO and GMP standards
Independent driving source for each workstation, simplifying maintenance
Product-contact surfaces polished for product protection
Servo-linked rod structure ensures even, stable pressure for consistent cap pressing quality
Integrated inspection function after each assembly process to eliminate defects
User-friendly PLC control system with human-machine interface
Precision servo motor + indexing drive for high assembly accuracy
Pneumatic power system reduces maintenance time
Fully customizable to meet specific production requirements

Technical Specifications

Applicable Products	Loop pull cap, double pull cap, single fold closure, double fold cap, break caps
Production Speed	3600-1400pcs/hr (customizable)
Qualified Product Rate	Above 99%
Operation Rate	Above 95%
Power Source	AC380V, 50Hz, 4kw/hr
Dimensions	Varies with production speed requirements
Weight	Approximately 2300kg
Operator Requirements	3 sets/2 persons (recommended 1 set/person)
