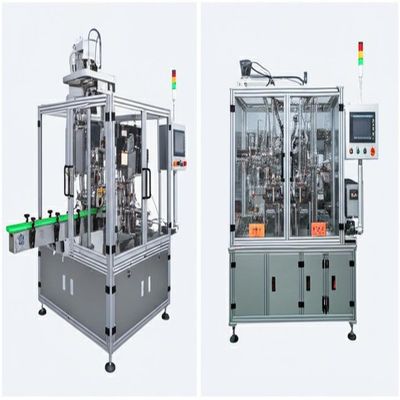

Fully Automated Lotion Pump and Trigger Sprayer Assembly Machine with 0.5m³/min Air Consumption and 4L Silicone Oil Storage

Merknaam:	SENCAN
Modelnummer:	SC-TP-798
MOQ:	1 set
Prijs:	Negotiate price according to actual situation
Betalingsvoorwaarden:	T/t, l/c
Leveringscapaciteit:	2-20 reeksen

Gedetailleerde informatie

Plaats van herkomst:

CHINA

Certificering:

CE, ISO9001

Spanning:

220V

Onderhoud:

Eenvoudig

Bedieningsinterface:

Aanraakscherm

Voedingsmethode:

Trillende schijf

Foutdetectie:

Automatisch

Bedieningsmethode:

Aanraakschermbesturing

Productcertificering:

CE, ISO

Luchtverbruik:

0.5 m3/min

Automatiseringsniveau:

Volledig geautomatiseerd

Capaciteit:

Volgens de vereiste van de klant

Verpakking Details:

Houten behuizing

Markeren:

Productbeschrijving

Lotion Pump Liquid Trigger Sprayer Assembly Machine and Precise Daily Necessities Assembly Machine for Consistent and Accurate Assembly

Key Features

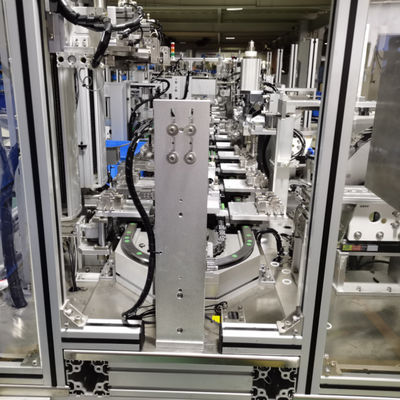

Linear sliding rail conveying system with servo motor drive for precise intermittent movement and static assembly positioning
Independent workstations with secondary positioning to achieve over 98% product qualification rate
Cylinder-powered manipulators for simplified maintenance and faster spare parts replacement
Automatic silicone oil application during tube insertion with 4L oil storage capacity
Optional enclosure for feeding plate to reduce operational noise
Integrated quality detection at each assembly stage to eliminate defective products
PLC control system with touch screen interface for easy operation

Technical Specifications

Applicable Products	Lotion pump, shampoo pump, water sprayer, trigger sprayer, perfume pump, spray nozzle
Production Speed	1500-2500pcs/hr (customizable to customer requirements)
Product Qualification Rate	Above 98%
Operation Rate	Above 95%
Power Requirements	AC380V, 50Hz, 4kw/hr
Dimensions	Variable based on production speed requirements
Weight	Approximately 3000kg
Operator Requirement	1 person per machine
