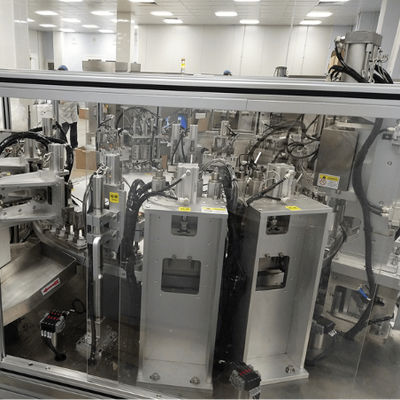

High-Performance Euro Cap Assembly Machine for Fast and Accurate Assembly with 99% Satisfactory Rate and 4500-12000 per/hour Capacity

Grote Afbeelding : High-Performance Euro Cap Assembly Machine for Fast and Accurate Assembly with 99% Satisfactory Rate and 4500-12000 per/hour Capacity

Productdetails:

Plaats van herkomst:	China
Merknaam:	SENCAN
Certificering:	CE, ISO9001
Modelnummer:	SC-TP-814

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal:	1 Instellen
Prijs:	Negotiate price according to actual situation
Verpakking Details:	Houten kist
Levertijd:	90 dagen
Betalingscondities:	T/T,L/C
Levering vermogen:	2-20 reeksen

Contact

Gedetailleerde productomschrijving

Luchtdrukmeter:	SMC	Werksnelheid:	Verstelbaar
Werkmethode:	Draaiplaat/mechanische	Efficiëntieverhouding:	Meer dan 95%
Verrichtingspersoon:	1 persoon	Materiaal:	Roestvrij staal
Productkracht:	220V	Frequentie:	50/60 Hz
Montagecapaciteit:	4500-12000 per uur	Operator:	Enkel
Bevredigend tarief:	Ongeveer 99%	Toepasselijke doppen:	Euro-caps
Bedrijfsmodus:	Semi-automatisch	Mechanisme:	Servo
Markeren:	Fast and Accurate Euro Cap Assembly Machine , 99% Satisfactory Rate Infusion Cap Assembly Machine , 4500-12000 per/hour Automatic Cap Assembly Machine

High-Performance Euro Cap Assembly Machine for Fast and Accurate Assembly

Product Features

Designed for automatic assembly of easy peel foil caps for IV infusion soft bags and bottles
Constructed with stainless steel and aluminum alloy materials, compliant with GMP standards
Independent driving source for each workstation, facilitating easy maintenance
Product-contact surfaces polished for optimal product protection
Automated foil cutting and welding process
Integrated check function after each assembly step to ensure product quality
PLC control system with user-friendly interface, requiring minimal operator training
Servo motor + indexing drive power system for high precision assembly and qualification rates
Pneumatic power system reduces maintenance time and technical requirements
Fully customizable to meet specific product specifications, capacity, and production demands

Technical Specifications

Applicable Products	Peel seal foil caps, foil seal closures and lids
Production Speed	1500-8500pcs/hr (customizable to customer requirements)
Qualified Product Rate	Above 99%
Operation Rate	Above 95%
Power Source	AC380V, 50Hz, 4kw/hr
Dimensions	Varies according to production speed requirements
Weight	Approximately 2000kg
Operator Requirements	3 sets/2 persons, recommended 1 set/person
