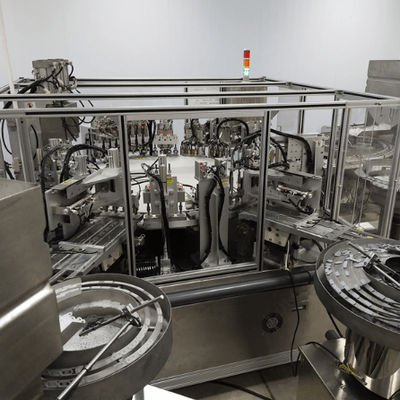

Automatic Euro Cap Assembly Machine with 0.6 MPa Air Pressure and 4500-12000 per/hour Capacity for 99% Qualified Rate

Merknaam:	SENCAN
Modelnummer:	SC-TP-815
MOQ:	1 Instellen
Prijs:	Negotiate price according to actual situation
Betalingsvoorwaarden:	T/T,L/C
Leveringscapaciteit:	2-10 SETS

Gedetailleerde informatie

Plaats van herkomst:

China

Certificering:

CE, ISO9001

Montagecapaciteit:

4500-12000 per uur

Luchtdruk:

0,6 MPa

Type:

Automatisch

Snelheid:

Verstelbaar

Hoofdkracht:

Servo

Drijfveer:

Servomotor

Botteltype:

Plastic flessen

Toepasselijke producten:

Doppelvoudige dop

Luchtdrukmeter:

SMC

Controle:

PLC

Mechanisme:

Servo

Bedrijfsmodus:

Automatisch

Productmateriaal:

Metaal/plastic

Verpakking Details:

Houten kist

Markeren:

Productbeschrijving

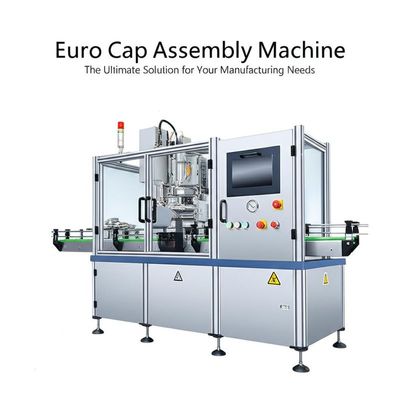

Euro Cap Assembly Machine - The Ultimate Solution for Your Manufacturing Needs

Product Features

Designed for automatic assembly of easy peel foil caps for IV infusion soft bags and bottles
Constructed with stainless steel and aluminum alloy materials, fully compliant with GMP standards
Independent driving source at each workstation for simplified maintenance
Product-contact surfaces are polished for optimal product protection
Automated foil cutting and welding process
Integrated check function after each assembly step to eliminate defective products
User-friendly PLC control system with human-machine interface operation
Precision servo motor + indexing drive system ensures high assembly accuracy
Pneumatic power system reduces maintenance time and technical requirements
Fully customizable to meet specific product specifications and production demands

Technical Specifications

Applicable Products	Peel seal foil caps, foil seal closures and lids
Production Speed	1,500-8,500 pieces/hour (customizable)
Product Qualification Rate	Above 99%
Operation Rate	Above 95%
Power Source	AC380V, 50Hz, 4kW/hour
Dimensions	Varies according to production speed requirements
Weight	Approximately 2,000kg
Operator Requirements	3 sets/2 persons (recommended 1 set/person)
