Euro Cap Assembly Machine with 4000-12000 Caps per Hour, 99% Qualified Rate, and PLC Control System for Automatic Infusion Cap Assembly

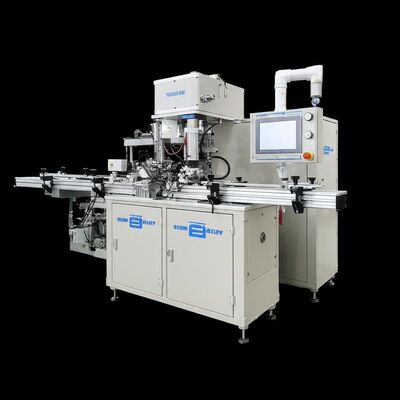

Grote Afbeelding : Euro Cap Assembly Machine with 4000-12000 Caps per Hour, 99% Qualified Rate, and PLC Control System for Automatic Infusion Cap Assembly

Productdetails:

Plaats van herkomst:	China
Merknaam:	SENCAN
Certificering:	CE, ISO9001
Modelnummer:	SC-TP-833

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal:	1 set
Prijs:	Negotiate price according to actual situation
Verpakking Details:	houten kist
Levertijd:	90 dagen
Betalingscondities:	T/T,L/C
Levering vermogen:	2-20 reeksen

Contact

Gedetailleerde productomschrijving

Verrichtingspersoon:	1 persoon	Productgrootte:	Groot
Toepasselijk product:	Infusion cap, euro cap	Productnaam:	Euro Cap assemblage machine
Efficiëntieverhouding:	Meer dan 95%	Functie:	Montage van producten voor medische doppen
Productcapaciteit:	4000-12000 caps per uur	Voordeel:	Vlakke lasoppervlak van infusiedop
Werkingspercentage:	96%	Bedrijfsmodus:	Automatisch
type voer:	Vibratie schijf	Functies:	Hoog rendement, eenvoudig te bedienen
Markeren:	4000-12000 caps per hour Euro Cap Assembly Machine , 99% qualified rate Automatic Cap Assembly Machine , PLC control system Infusion Cap Assembly Machine

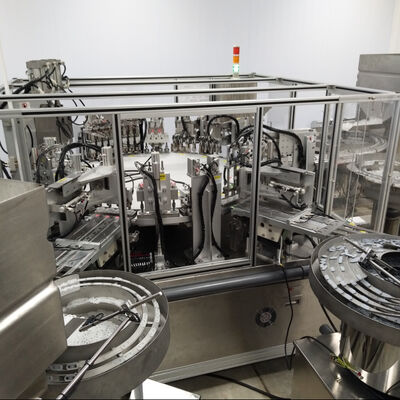

Euro Cap Assembly Machine

Engineered to reduce manual intervention while improving safety and consistency in cap assembly tasks for pharmaceutical packaging applications.

Key Features

Automatic assembly of caps for plastic IV infusion bags and bottles
Constructed from stainless steel and aluminum alloy, compliant with ISO and GMP standards
Independent driving source for each workstation, facilitating easy maintenance
Product-contact surfaces polished to protect product integrity
Servo-linked rod structure system ensures even, stable pressure for consistent cap pressing quality
Integrated inspection function after each assembly process eliminates defective products
PLC control system with user-friendly human-machine interface requires minimal operator training
Servo motor + indexing drive main power ensures high assembly precision and qualification rates
Pneumatic power system reduces maintenance downtime
Highly customizable to meet specific customer requirements and production demands

Technical Specifications

Applicable Products	Loop pull cap, double pull cap, single fold closure, double fold cap, break caps
Production Speed	3600-1400 pcs/hr (customizable to requirements)
Qualified Product Rate	Above 99%
Operation Rate	Above 95%
Power Source	AC380V, 50Hz, 4kW/hr
Dimensions	Varies with production speed requirements
Weight	Approximately 2300kg
Operator Requirements	3 sets/2 persons, recommended 1 set/person
