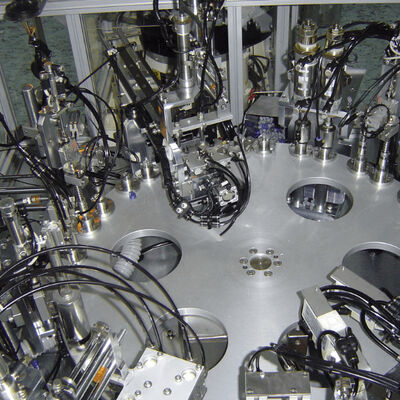

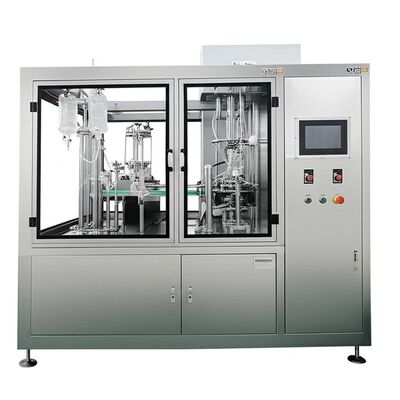

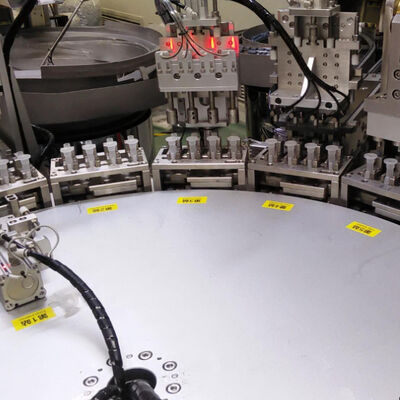

Automatic IV Bag Spike Ports and Injection Ports Assembly Machine with PLC Control System and Stainless Steel Construction for 8000-15000pcs/hr Production

Automatic IV Bag Spike Ports and Injection Ports Assembly Machine with PLC Control System and Stainless Steel Construction for 8000-15000pcs/hr Production
Automatic IV Bag Spike Ports and Injection Ports Assembly Machine with PLC Control System and Stainless Steel Construction for 8000-15000pcs/hr Production Automatic IV Bag Spike Ports and Injection Ports Assembly Machine with PLC Control System and Stainless Steel Construction for 8000-15000pcs/hr Production Automatic IV Bag Spike Ports and Injection Ports Assembly Machine with PLC Control System and Stainless Steel Construction for 8000-15000pcs/hr Production

Grote Afbeelding :  Automatic IV Bag Spike Ports and Injection Ports Assembly Machine with PLC Control System and Stainless Steel Construction for 8000-15000pcs/hr Production

Productdetails:
Plaats van herkomst: China
Merknaam: SENCAN
Certificering: CE, ISO9001
Modelnummer: SC-TP-739
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: 1 set
Prijs: Negotiate price according to actual situation
Verpakking Details: houten kist
Levertijd: 90 dagen
Betalingscondities: T/T,L/C
Levering vermogen: 2-20 reeksen
Contact
Gedetailleerde productomschrijving
Bedrijfsmodus: Automatisch Garantieperiode: 1 jaar
type voer: Vibratie schijf Controle: PLC
Productfrequentie: 50 Hz Kabel maat: Driefasig vijfdraadssysteem
Productcapaciteit: 4000-12000 caps per uur Werkmethode: Draaiplaat/mechanische
Type bewerking: Indexbeweging Bedienband: Draaibaar
Markeren:

8000-15000pcs/hr IV Bag Spike Ports Assembly Machine

,

PLC Control System Injection Ports Assembly Machine

,

Stainless Steel Construction Medical Product Assembly Machine

IV Bag Spike Ports and Injection Ports Assembly Machine
Product Overview

Automated assembly system designed for spike ports and injection ports of non-PVC double tube soft bags, aluminum-plastic PC infusion ports, and PP/polypropylene dosing plugs.

Key Features
  • Constructed with stainless steel and aluminum alloy materials, compliant with ISO and GMP pharmaceutical packaging standards
  • Titanium alloy aluminum plastic cap sealing material with mirror-polished surface for superior sealing quality
  • Gear-driven rotation sealing knife system with individual cap sealing for high qualification rates
  • Integrated detection systems at each workstation ensuring assembly accuracy and correctness
  • Servo motor + indexing drive main power system for high-precision assembly operations
  • PLC control system with touch screen HMI for intuitive operation
Technical Specifications
Applicable Products Aluminum-plastic caps & ports, PC ports, spike ports and injection ports for non-PVC soft tube IV bags
Production Speed 8,000 - 15,000 pcs/hr (customizable to customer requirements)
Qualified Product Rate Above 99%
Operation Rate Above 95%
Power Source AC380V, 50Hz, 4kW/hr
Dimensions L3500 × W3400 × H1800 (mm) (actual size varies with production speed)
Weight Approximately 3000kg
Operator Requirement 1 person per machine
